产品应用

Product name: SK700 全硬螺杆 Brand name: 全硬螺杆、合金螺杆、积康螺杆
Model name: 注塑机、挤出机、造粒机、吹塑机等 Material: 进口合金钢
Application conditions: 积康研发 Range of work: 直径:14D-180D 长度:10-3000mm
Processing technic: 真空淬火、高温回火 Straightness: 58-60(HRC)

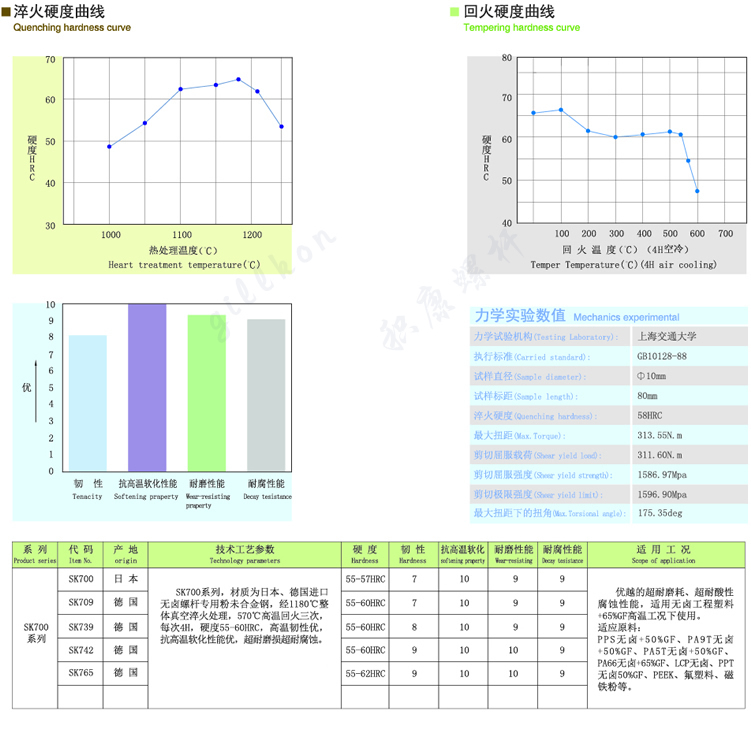

Technical parameter: SK700系列,材质为日本、德国进口无卤螺杆专用粉末合金钢,经1180℃整体真空淬火处理,570℃高温回火三次,每次4H,硬度55-60HRC,高温韧性优,抗高温软化性能优,超耐磨损超耐腐蚀。

Applicable conditions 优越的超耐磨耗、超耐酸性腐蚀性能,适用无卤工程塑料+65%GF高温工况下使用。 适用原料: PA9T、PA10T、PPS无卤、PA4T、LCP、氟塑料、磁铁粉成型等。




Product description

SK700 series, the materils are halogen free spcial powder alloy for making screw which are imported from Japan and Germany. Through 1180℃ vacuum quenching and 3 times of 570℃ tempering, four hours one time. The hardness is 55-60HRC, perfect function of toughness and softening resistance in high termperature, super function of wear and corrosion resistance. Alloy composition: C:2.3, Cr:23, Mo:1.3, Si:1.3, W:3.2, V:8.9, Co:4.6

Perfect wear and corrosion resistance fit for halogen free engineering plastic+65%GF high temperature environment.Appliction for raw material: PPS halogen free+50%GF,PA9T halogen free+50%GF,PAT halogen free+50%GF,PA66 halogen free+65%GF, LCP halogen free, PPT halogen free+50%GF,PEEK,fluoroplastics,magnetic powder
